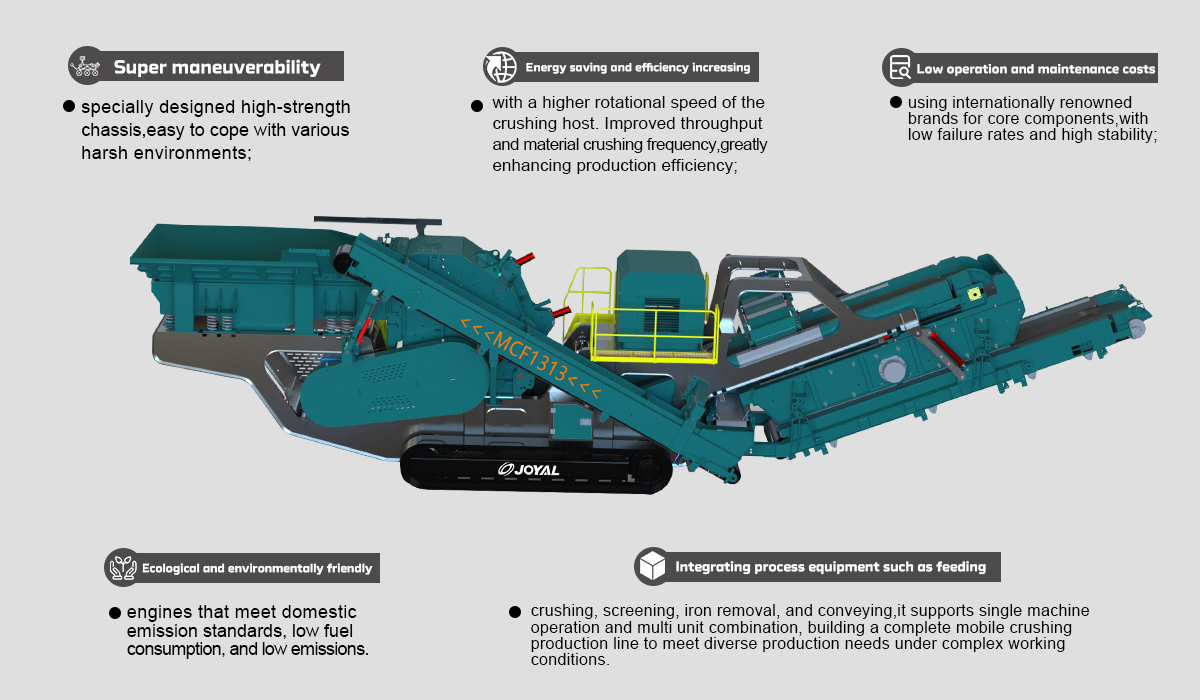

Tracked Impact Crushing Plant

The tracked mobile counterattack crushing station mainly uses sand and gravel aggregates as well as construction waste for crushing Strong mobility, good on-site mobility and adaptability to complex construction environments such as mountains and wetlands

Applications: Granite, river stone, black rock, basalt, limestone, mountain rock, pebble;

E-mail: joyal@crusherinc.com

Product Advantages

01

Move easily.

02

Compactly structured and simple to operate.

03

High cost-performance ratio.

04

Wide application.

05

Superior performance and convenient to maintain.

06

Adjustable configuration

Application Industry

Tracked Impact Crushing Plant

Specifications - Technical Data

Model	MCF1010	MCF1213	MCF1315
Feeding Equipment
Capacity(t/h)	250	400	400
Max feeding size(mm)	550	650	650
Feeding Height(mm)	3750	3780	3780
Hopper Volume(m3)	7	9	9
Feeding Belt Conveyor
Motor(kw)	4100x1100 4.5x2	4100x1100 4.5x2	4100x1050 4.5x2
Impact Crusher
Model	PF1010	PF1313	PF1315
Max Feeding Size(mm)	500	550	600
Feed opening (mm)	1020x820	1320X1225	1630x930
Motor(kw)	160-200	200-250	250-280
Returning Belt Conveyor
Specifications	B650x3.5M	B650x3.5M	B650x3.5M
Motor(kw)	3	3	3
Main Belt Conveyor
Specifications	B1000x10M	B1000x12.5M	B1000x12.5M
Motor(kw)	11	5.5x2	5.5x2
Vibrating Screen
Specifications	4000x1600	5000x1800	5000x1800
Motor(kw)	3x2	4.5x2	4.5x2
Final Product Belt Conveyor
Specifications	B1400x5M	B1400x6M	B1400x6M
Unloading Height(mm)	2900	3000	3000
Motor(kw)	7.5	7.5	7.5
Transition Belt Conveyor
Specifications )Motor(kw)	B500x2M	B500x2.5M	B500x2.5M
Returnining BeIt Conveyor
Motor(kw)	B500x9.5M	B600x10M	B600x10M
Whole Plant
Capacity(t/h)	80-220	150-300	180-360
