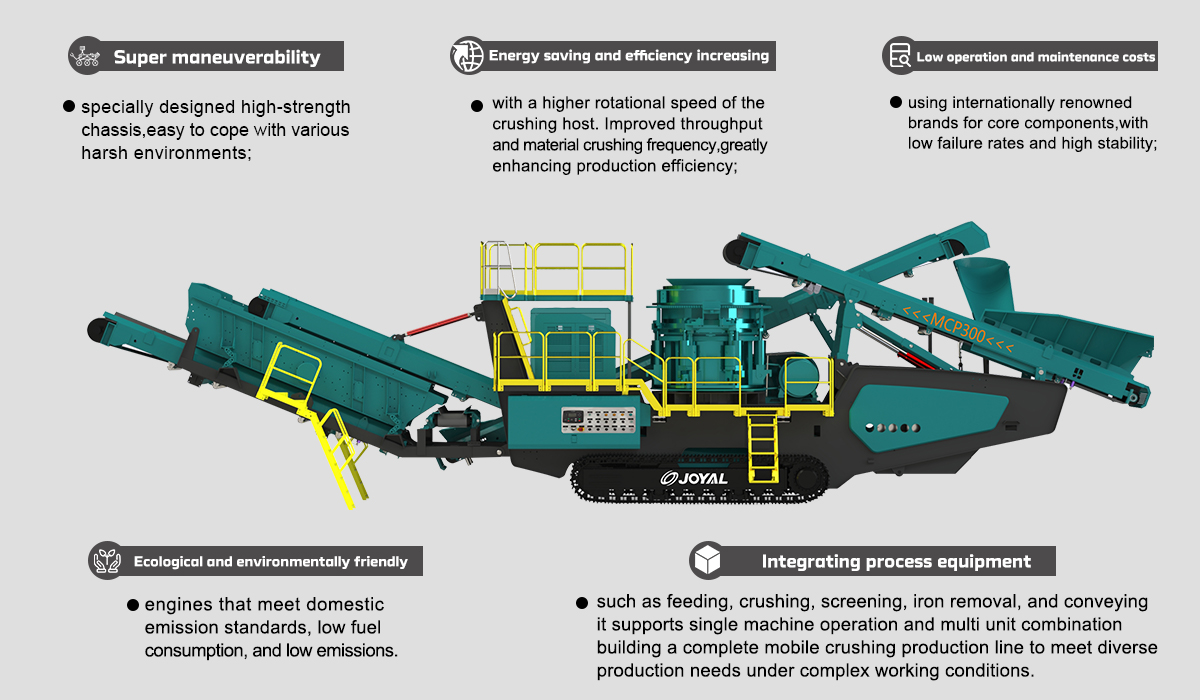

Crawler mobile cone crushing station brings greater crushing ratio and higher output, suitable for medium to high hardness rocks. The whole machine is compact, easy to transfer, with high crushing output, low wear, and high reliability.
Applications: Mainly using sand and gravel aggregates and construction waste for crushing. Strong mobility, good on-site mobility, suitable for complex construction environments such as mountainous areas and wetlands
E-mail: joyal@crusherinc.com
| Model | MCP200 | MCP300 |
| Feeding Equipment | ||
| Capacity(t/h) | 300 | 400 |
| Hopper Volume(m3) | 4 | 4 |
| Feeding Belt Conveyor | ||
| L x W(mm) | 6000*1000 | 6600*1000 |
| Feeding Height(mm) | 2600 | 2700 |
| Motor(kw) | 7.5 | 7.5 |
| Cone Crusher | ||
| Model | HP200 | HP300 |
| Max Feeding Size(mm) | 150 | 225 |
| Close Side Setting(mm) | 10-38 | 13-51 |
| Motor(kw) | 160 | 220 |
| Main Belt Conveyor | ||
| Specification | B1000x12M | B1000x12M |
| Unloading Height(mm) | 3100 | 3100 |
| Motor(kw) | 11 | 15 |
| Final Product Belt Conveyor | ||
| Specification | B1400x6M | B1400x6M |
| Unloading Height(mm) | 3000 | 3000 |
| Motor(kw) | 7.5 | 7.5 |
| Vibrating Screen | ||
| LxW ( mm) | 5000x1800 | 5000x1800 |
| Motor(kw) | 4.35x2 | 4.35x2 |
| Transition Belt Conveyor | ||
| Specification | B500 x2M | B500 x2M |
| Motor(kw) | 3 | 3 |
| Returning Belt Conveyor | ||
| Specification | B600x11M | B600x11M |
| Motor(kw) | 7.5 | 7.5 |
| Whole Plant | ||
| Capacity(t/h) | 95-225 | 110-360 |
300tph Quartz rock Mobile crushing line in Thailand
100tph Granite stone Mobile crushing line in Paraguay
200TPH Mountain Rock Mobile Crushing Plant in Mozambique
200tph Granite stone Mobile crushing line in Paraguay
40-60tph Mountain Rock Mobile crushing line in Peru
300tph Granite stone Mobile crushing line in Nigeria
