Tracked Mobile Screening Plant

Crawler Mobile Crushing and Screening Station is of high cost-performance ratio, and it is reliable in performance and reasonable in structure.

Applications: Crawler type mobile crushing & screening plant is widely used in road & bridge construction, metallurgy and other fields to crusher and screen.

E-mail: joyal@crusherinc.com

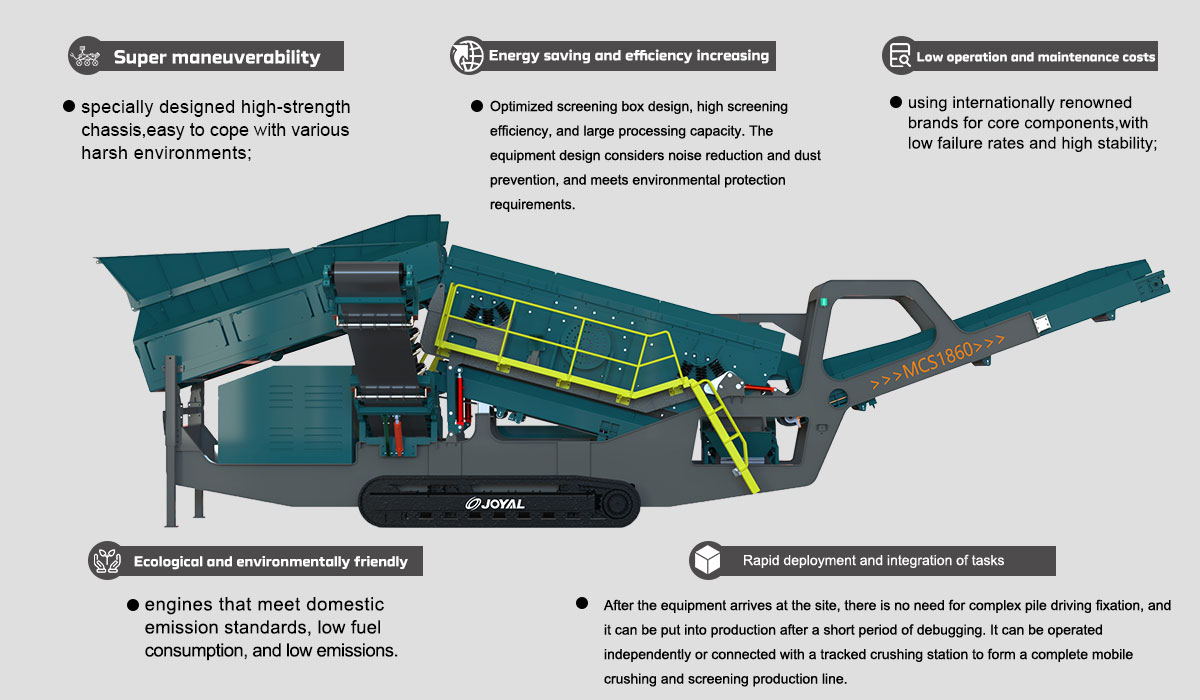

Product Advantages

01

Move easily.

02

Compactly structured and simple to operate.

Application Industry

Tracked Mobile Screening Plant

Specifications - Technical Data

Model	MCS-2160	MCS-1860	MCS-1848
Feeding Equipment
Capacity(t/h) （t/h）	450	300	250
Hopper Volume（m3）	2.5	2.5	2.5
Feeding Belt Conveyor
Model	B1000X11M	B800X11M	B800X10M
Feeding Height（mm）	2600	2600	2600
Motor(kw)	11	11	7.5
Vibrating Screen
Screen Size L x W(mm)	6000*2100	6000*1800	4800*1800
Decks	2（3）	2（3）	2（3）
Motor(kw)	22（30）	18.5（22）	18.5
A-Belt Conveyor
Specification Type	B600x5.5M	B600x5.5M	B600x5.5M
Unloading Height(mm)	3000	3000	3000
Motor(kw)	4	4	4
B—Belt Conveyor
Specification Type	B600x7M	B600x7M	B600x7M
Unloading Height（mm）	3000	3000	3000
Motor(kw)	4	4	4
C—Belt Conveyor
Specification	B600x7M	B600x7M	B600x7M
Unloading Height(mm)（mm）	3000	3000	3000
Motor(kw)	4	4	4
D-Belt Conveyor
Specification	B1200x8M	B1200x8M	B1000x8M
Unloading Height(mm)	3500	3500	3500
Motor(kw)	7.5	7.5	7.5
E- Belt Conveyor
Specification Type	B500x2.7M	B500x2.7M	B500x2.7M
Motor(kw)	3	3	3
